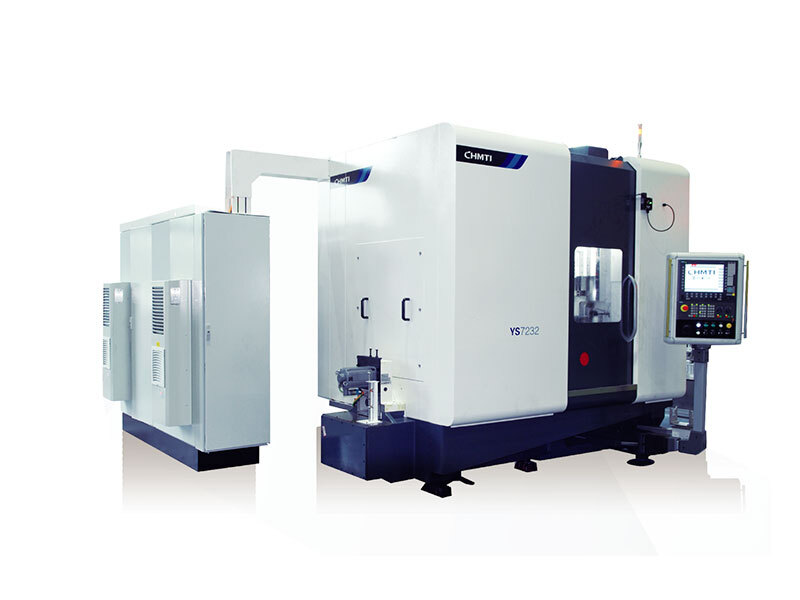

Main performance and characteristics of machine tool:

◆ the machine tool is an eleven axis five linkage CNC gear grinding machine.

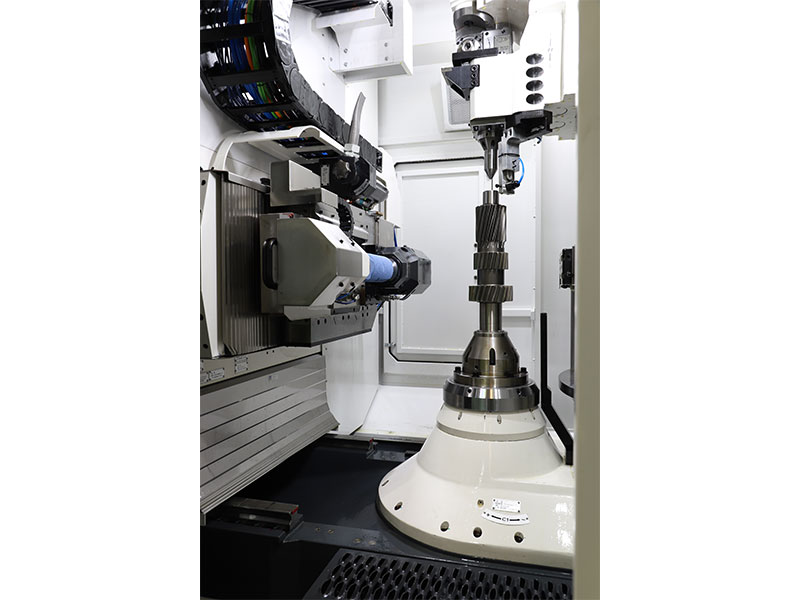

◆ the grinding wheel spindle adopts the original high-power direct drive motorized spindle imported from Germany, and each linear shaft adopts the high-rigid rolling linear guide rail imported from Europe.

◆ the machine tool software has perfect functions, which can realize various complex modification functions, such as arbitrary tooth direction modification, tooth surface distortion compensation, point modification (arbitrary tooth shape modification), tooth surface anilox grinding, double pressure angle asymmetric gear grinding, small taper gear grinding and so on.

◆ the machine tool adopts Siemens 840dsl system, which flexibly controls 11 NC axes through the system's multi-channel control platform to realize the full-automatic control of the whole machining process of automatic workpiece clamping, automatic grinding wheel dressing, high-speed tooth alignment, automatic grinding teaching, automatic dressing teaching, automatic Allowance Distribution and automatic grinding.

Main technical specifications and parameters of machine tool:
