DT400

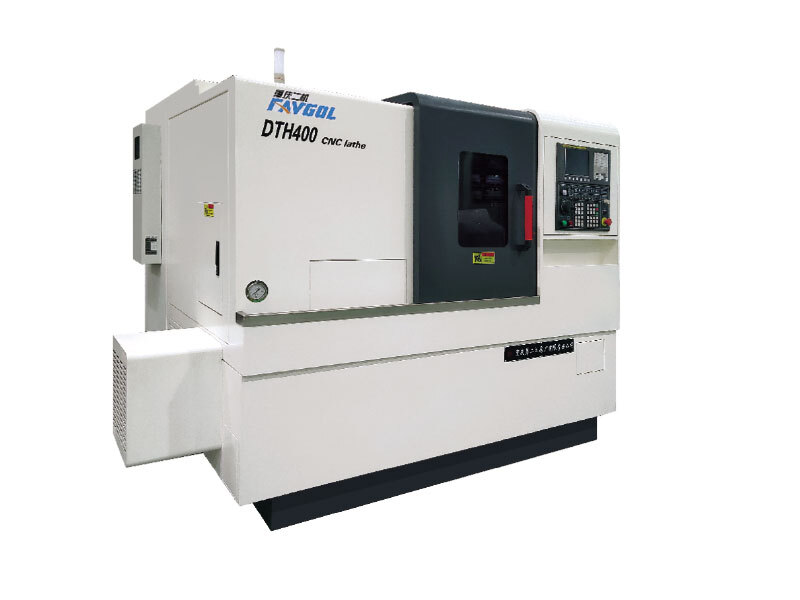

High speed precision CNC lathe
Dt400 is applicable to the processing of disc (or shaft) parts with complex geometric dimension and high precision requirements in motorcycle, automobile, light industrial instrument ; Dth400 is applicable to the hot post-processing of discs (or shafts) of automobile, and construction machinery.
CategoryLathe & Machining Center
Detail
High speed precision turning equipment
The machine tool is a three-axis two linkage high-speed precision CNC lathe, which is green, environment-friendly and efficient.
The machine tool adopts modular design, integral bed base and 30 ° inclined bed saddle, with compact structure, enough rigidity and good vibration absorption. Equipped with fully enclosed protection, chip removal can be freely converted to side row or rear row, which is easy to be automated into a composition line.
The machine tool spindle adopts imported high-precision spindle bearings with high speed, good rigidity and high precision. The feed shaft servo motor is directly connected with the ball screw for direct transmission, and the imported linear rolling guide rail is selected, which has high dynamic response performance and good precision retention.
The machine tool can be equipped with power tool holder to realize turn milling compound machining; Power distribution spindle, linear motor and grating ruler can also be selected to further improve the machining accuracy and dynamic response performance of the lathe.
The machine tool can be configured with automatic line interface to form an automatic production line.
The machine tool can be configured with FANUC, Guangshu or kanti system.
|

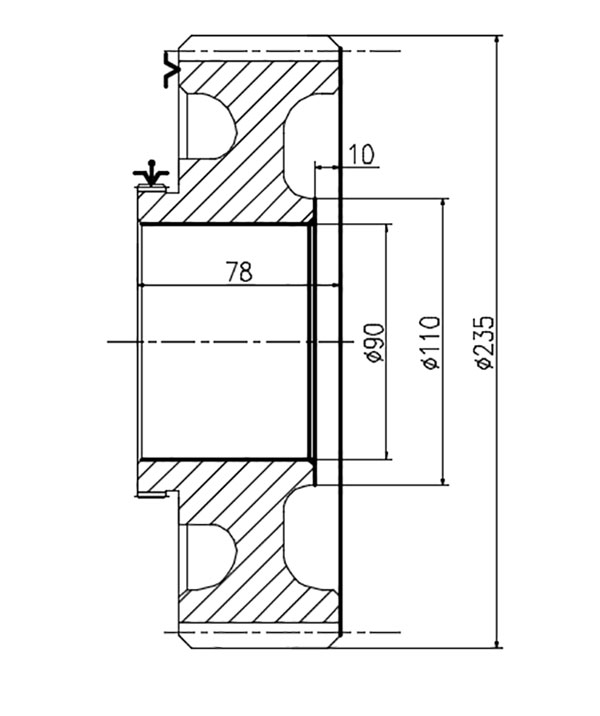

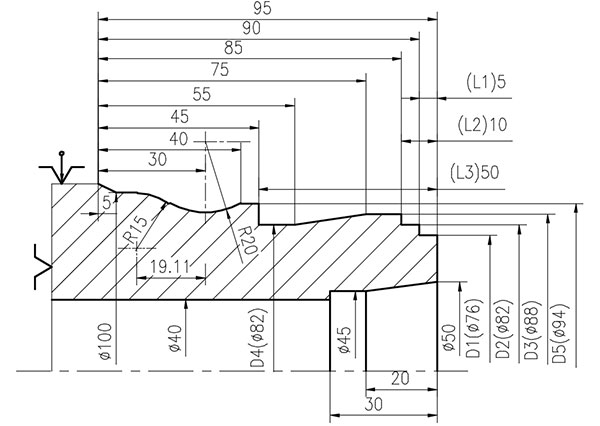

Show artifacts |
||||
|
|
||||
|
Main specifications and parameters of machine tool |
Maximum workpiece diameter (disc) (mm) |
Φ350 |
||
|
Maximum workpiece diameter (shaft) (mm) |
Φ220 |
|||
|
Maximum turning workpiece length (mm) |
300 |
|||
|
Spindle speed range (R / min) |
100～3500 |
|||
|
Servo main motor power (kw) |
11 |
|||
|
Tool parameters |
Tool specification |
Cylindrical turning tool:20*20 |
||
|
Inner hole turning tool:D20 |
||||
|
Blade specification |
VBMT160408/CCMT090304 |
|||
|
Blade material |
NC3020 |
|||
|
Cutting parameters |
Processing content |
Finish turning end face, outer circle |
Finish turning inner hole |
|
|
Spindle speed |
700r/min |
1200r/min |
||
|
Feed rate |
0.15mm/r |
0.15mm/r |
||
|
Auxiliary time |
15S |
0S |
||
|
Cutting time |
71S |
23S |
||
|
Work step |
86S |
23S |
||
|
Processing beat |
109S |
|||
Dth400 high speed precision CNC lathe
Preferred equipment for high rigidity hot rear hard car
The machine tool is a three-axis two linkage high-speed precision CNC lathe, which is green, environment-friendly and efficient.
The machine tool adopts modular design, integral bed base and 30 ° inclined bed saddle, with compact structure, enough rigidity and good vibration absorption. Equipped with fully enclosed protection, chip removal can be freely converted to side row or rear row, which is easy to be automated into a composition line.
The machine tool spindle adopts imported high-precision spindle bearings with high speed, good rigidity and high precision. The feed shaft servo motor is directly connected with the ball screw for direct transmission, and the imported linear rolling guide rail is selected, which has high dynamic response performance and good precision retention.
The machine tool can be equipped with power tool holder to realize turn milling compound machining; Power distribution spindle, linear motor and grating ruler can also be selected to further improve the machining accuracy and dynamic response performance of the lathe.
The machine tool can be configured with automatic line interface to form an automatic production line.
The machine tool can be configured with FANUC, Guangshu or kanti system.
|
