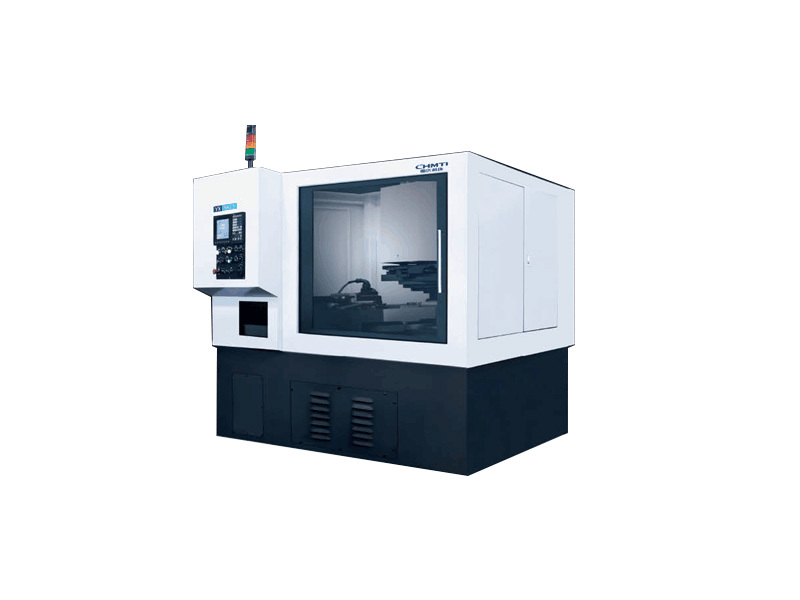

YK8425A
CNC gear extruding machine
The machine tool is mainly used for the processing of inverted bevel gear and external inverted bevel gear of speed change gear sleeve of automobile synchronizer. It has the characteristics of excellent performance and convenient operation. It is an ideal supporting equipment for large and medium batch production and assembly line production in gear industry.
CategoryGreen Manufacturing Equipment
Detail
1. Characteristics
◆ the machine tool can complete the processing of a large number of conical teeth only once adjustment, and can finely adjust the feed depth and forward and reverse rotation angle.
◆ compared with the traditional rolling mill, the accuracy and roughness are qualitatively improved.
◆ high cost performance.
2. Main technical specifications and parameters
| Maximum rolling pressure | 80KN |
| Maximum machining workpiece diameter (internal teeth) | φ250 |
| Center distance between extruding wheel and workpiece during extruding external teeth | 150-120mm |
| Extruding wheel outer circle (extruding internal teeth) | φ280mm |
| Workpiece tray when extruding internal teeth | φ300mm |
| Maximum machining workpiece modulus | 0～6mm |
| Vertical cylinder stroke | 0～190mm |
