VSC260

Grinding center

It is suitable for hot turning and grinding of disc gear parts.

CategoryLathe & Machining Center

Consult Back to list

Detail

High precision and high efficiency CNC equipment for turning grinding integrated machining

One time clamping completes turning and grinding, which significantly improves the machining accuracy and efficiency.

Inverted vertical layout, compact structure and good chip removal effect; Fully enclosed protection, beautiful and generous, and effectively prevent chip and coolant splash.

Motorized spindles are used for turning and grinding spindles, which are equipped with circulating water cooling to effectively control the heat source and effectively improve the machining accuracy and machining stability.

The linear feed axis adopts grating ruler full closed-loop feedback to effectively improve the transmission accuracy.

Equipped with circulating silo, the workpiece spindle directly grabs the workpiece from the silo, with high degree of automation and high efficiency.

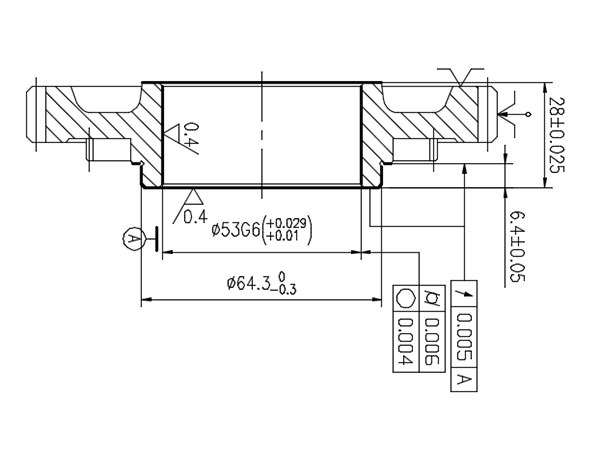

Show artifacts

Main specifications and parameters of machine tool	Maximum rotation diameter (mm)			Φ260
	Maximum workpiece diameter (mm)			Φ200
	Maximum workpiece length (mm)			80
	Workpiece spindle power (kw)			15
	Spindle power of internal circular mill (kw)			15
	Power of cylindrical grinding spindle (kw)			18
	X-axis stroke (mm)			1600
	Z-axis stroke (mm)			300
Tool parameters	Tool specification			Cylindrical knife：20*20
	Blade specification			SDJCR2020K11
	Blade material			KW10
Cutting parameters	Processing content	Finish turning outer circle and end face	Finish turning inner hole		Rear end face of rollover	Finish grinding cylindrical end face	Fine grinding inner hole
	Spindle speed	800r/min	1000r/min		800r/min	3000r/min	20000r/min
	Feed rate	0.08mm/r	0.1mm/r		0.06mm/r	800mm/min	600mm/min
	Auxiliary time	12S	2S		2S	2S	2S
	Cutting time	14S	20S		8S	22S	20S
	Step time	26S	22S		10S	24S	22S
	Single piece beat	106S
