YE3115CNC/YH3115CNC

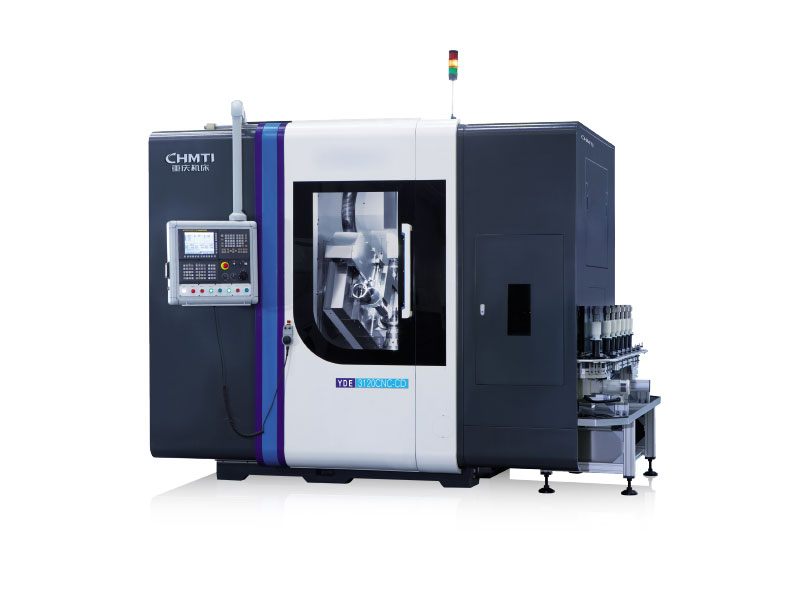

High speed dry cutting hobbing machine

Ye3115cnc machine tool is mainly suitable for high-volume processing of precision gears in new energy vehicles, automatic transmissions, precision reducers and other industries. Yh3115cnc machine tool is mainly suitable for gear processing in motorcycles, passenger cars, instruments and meters, electric tools, general machinery, reducers and other industries, with high cost performance. The finishing accuracy of the machine tool can reach grade 6 of GB / t10095.1-2008 standard (the actual machining accuracy shall be subject to the technical agreement signed with the user).

CategoryHobbing Machine

Consult Back to list

Detail

Main performance and characteristics of machine tool:

◆ six axis four linkage high-speed dry cutting hobbing machine, green, environmental protection and high efficiency.

◆ compact structure, small floor area, equipped with fully sealed shield, chip internal protection and dry cooling system to realize high-speed dry cutting of gears.

◆ the tool and workpiece spindle adopt direct drive, with fast transmission speed and high operation precision.

◆ the machine tool can be equipped with single machine automation and a variety of connection interfaces to meet the needs of users for automatic and flexible production.

◆ ye3115cnc machine tool is equipped with Siemens or FANUC system, and yh3115cnc is equipped with domestic CNC system, which can meet the needs of different customers.

Main technical specifications and parameters of machine tool:

Serial number	Main technical specifications		Parameter specification
Serial number	Main technical specifications		YE3115CNC	YH3115CNC
1	Maximum workpiece diameter	mm	150	150
2	Maximum workpiece modulus	mm	4	4
3	Maximum rotation angle of tool rest	°	±45°	±45°
4	Maximum speed of hob spindle	r/min	2500	2500
5	Maximum speed of worktable	r/min	300	300
6	Maximum tool size (diameter) × Length)	mm	Φ130×180	Φ100×180
7	Maximum axial movement of hob	mm	150	150
8	Distance from hob center to worktable rotation center	mm	15-155	15-175
9	Distance from hob center to worktable	mm	180-480	200-470
