YDE3120CNC/YH3120CNC

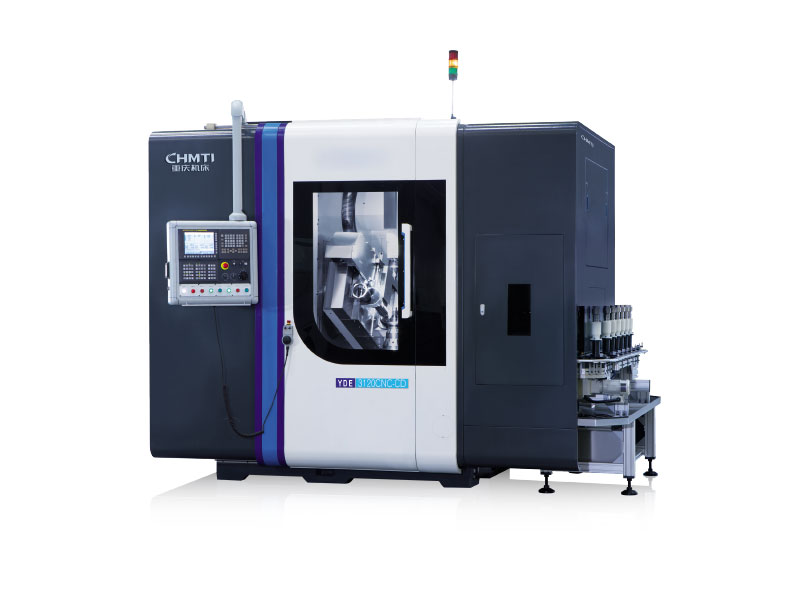

High speed dry cutting hobbing machine

The yde3120cnc machine tool is mainly applicable to the mass processing of precision gears in new energy vehicles, automatic transmissions, precision reducers and other industries. The yh3120cnc machine tool is mainly applicable to the gear processing of motorcycles, passenger cars, instruments and meters, electric tools, general machinery, reducers and other industries, with high cost performance. The finishing accuracy of the machine tool can reach grade 6 of GB / t10095.1-2008 standard (the actual machining accuracy shall be subject to the technical agreement signed with the user).

CategoryHobbing Machine

Consult Back to list

Detail

Main performance and characteristics of machine tool:

◆ six axis four linkage high-speed dry cutting hobbing machine, green, environmental protection and high efficiency.

◆ compact structure, small floor area, equipped with fully sealed shield, chip internal protection and dry cooling system to realize high-speed dry cutting of gears.

◆ the tool and workpiece spindle adopt direct drive, with fast transmission speed and high operation precision.

◆ the machine tool can be equipped with single machine automation and a variety of connection interfaces to meet the needs of users for automatic and flexible production.

◆ the machine tool is equipped with Siemens or FANUC system, which can meet the needs of different customers.

Main technical specifications and parameters of machine tool:

Serial number	Main technical specifications		Parameter specification
Serial number	Main technical specifications		YDE3120CNC	YH3120CNC
1	Maximum workpiece diameter	mm	210	200
2	Maximum workpiece modulus	mm	4	6
3	Maximum rotation angle of tool rest	度	±45°	±45°
4	Maximum speed of hob spindle	r/min	3000	2300
5	Maximum speed of worktable	r/min	300	250
6	Large tool size (diameter) × Length)	mm	Φ130×230	Φ130×230
7	Maximum axial movement of hob	mm	180	180
8	Distance from hob center to worktable rotation center	mm	30-180	30-230
9	Distance from hob center to worktable	mm	195-495	185-485
