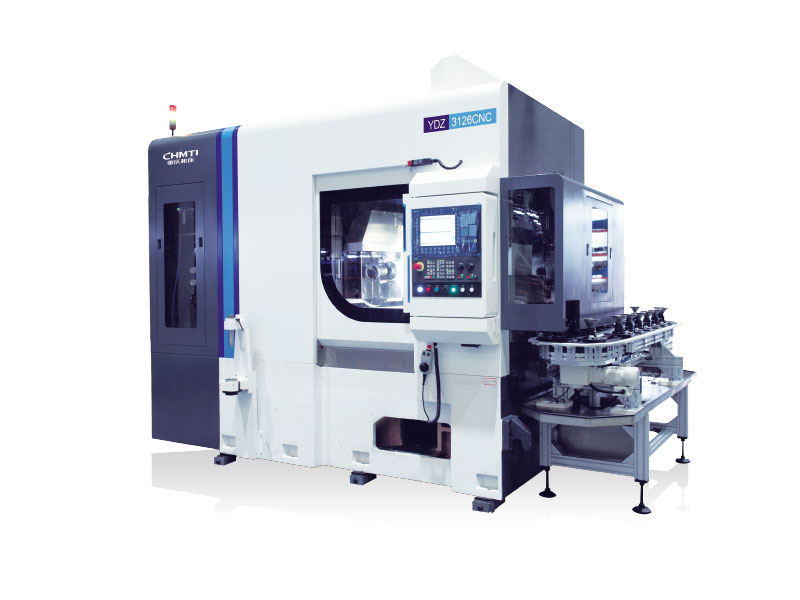

YDZ3126CNC

High speed dry cutting hobbing machine

The machine tool is mainly suitable for mass hobbing of gears in passenger cars, commercial vehicles, construction machinery, reducer and other industries; The finishing accuracy of the machine tool can reach grade 6 of GB / t10095.1-2008 standard (the actual machining accuracy shall be subject to the technical agreement signed with the user).

CategoryHobbing Machine

Consult Back to list

Detail

Main performance and characteristics of machine tool:

◆ the machine tool is a six axis / seven axis four linkage high-speed dry cutting hobbing machine, which is green, environmental friendly and efficient.

◆ the machine tool is equipped with full sealing shield, fast chip removal internal protection and dry cooling system. The machine tool has good thermal stability and stable processing size.

◆ the machine tool and workpiece spindle adopt direct drive transmission, with short transmission chain and high transmission accuracy.

◆ the machine tool can be equipped with single machine loading and unloading mechanism and automatic transmission silo to meet the needs of automatic and flexible production.

◆ the machine tool can be equipped with chamfering and deburring mechanism to realize the functional combination of multiple processes.

◆ the machine tool can be configured with Siemens or FANUC system.

Main technical parameters:

Serial number	Main technical specifications		Parameter specification
Serial number	Main technical specifications		YDZ3126CNC
1	Maximum workpiece diameter	mm	260
2	Maximum workpiece modulus	mm	6
3	Maximum return angle of tool holder	°	±45°
4	Maximum speed of hob spindle	r/min	2500
5	Maximum speed of worktable	r/min	250
6	Maximum tool size (diameter) × Length)	mm	Φ130×230
7	Maximum axial movement of hob	mm	200
8	Distance between hob center and worktable rotation center	mm	30~220
9	Distance from hob center to worktable	mm	135~485
