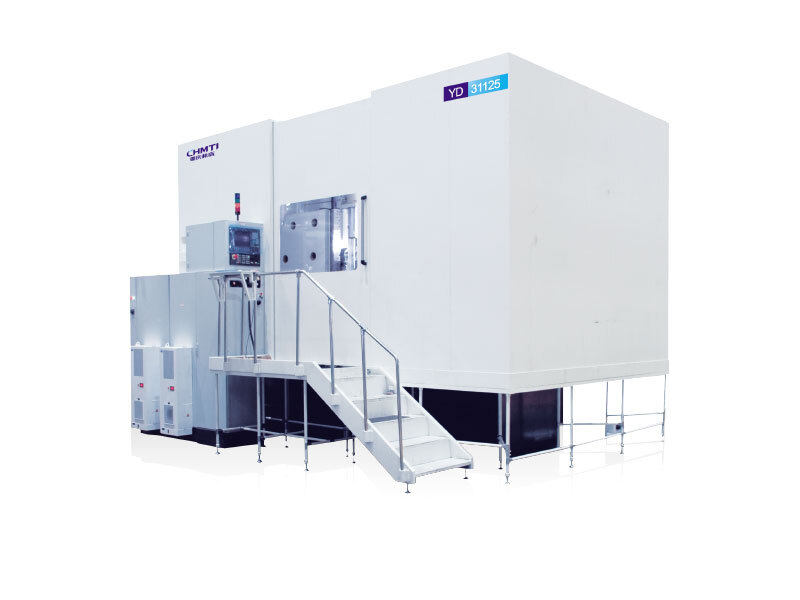

Large CNC hobbing machine

The machine tool is suitable for gear processing in heavy truck, wind power, engineering machinery, ship, hoisting, mining machinery, power generation equipment and other industries.

CategoryHobbing Machine

Consult Back to list

Detail

Main performance and characteristics of machine tool:

◆ the machine tool is a six axis four linkage large CNC hobbing machine.

◆ the machine tool adopts the vertical layout of fixed worktable and moving column to complete radial feed. The machine tool has fully enclosed shield, oil mist collection device and automatic chip removal device.

◆ hob spindle adopts high-precision gear transmission, and worktable adopts double worm gear transmission.

◆ the machine tool is suitable for efficient machining of high-speed coated hobs and cemented carbide blade hobs.

◆ for large module gears, the machine tool can adopt disc milling cutter and hob for one-time clamping to realize rough milling and fine rolling process.

Main technical specifications and parameters of machine tool:

Serial number	Main technical specifications		Parameter specification
Serial number	Main technical specifications		Y31320CNC6
1	Maximum workpiece diameter	mm	3200
2	Maximum workpiece modulus	mm	32
3	Maximum return angle of tool holder	°	45
4	Maximum speed of hob spindle	r/min	200
5	Maximum speed of worktable	r/min	4
6	Maximum tool size (diameter) × Length)	mm	φ460×600
7	Maximum axial movement of hob	mm	600
8	Distance between hob center and worktable rotation center	mm	280-2000
9	Distance from hob center to worktable	mm	765-2765
10	Table bearing	T	40
11	Main motor power	KW	53
