Y3140CNC4~6

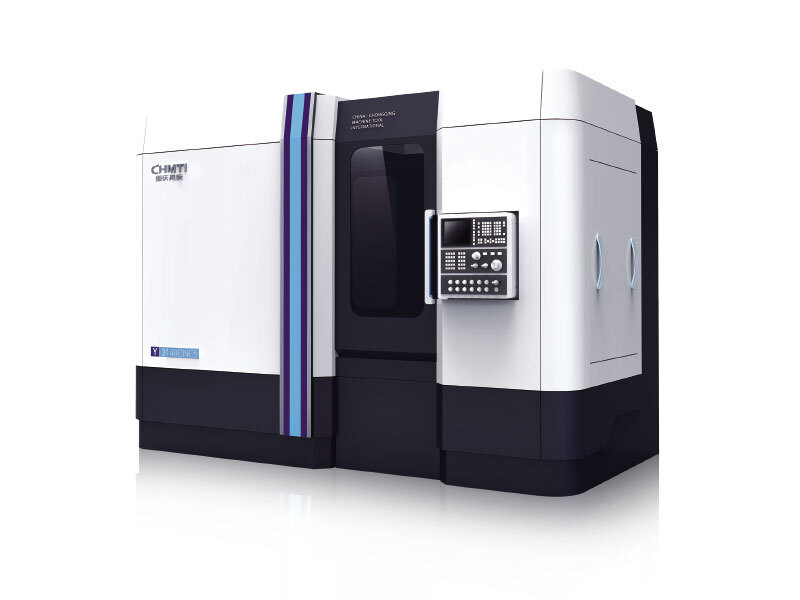

CNC high efficiency gear hobbing machine

The machine tool is mainly suitable for high-efficiency gear hobbing in large quantities in passenger cars, commercial vehicles, construction machinery, marine machinery, agricultural machinery, reducer and other industries. The finishing accuracy of the machine tool can reach grade 6-7 of GB / t10095.1-2008 standard (the actual machining accuracy shall be subject to the technical agreement signed with the user).

CategoryHobbing Machine

Consult Back to list

Detail

Main performance and characteristics of machine tool:

◆ the machine tool is a six axis four linkage CNC high-efficiency gear hobbing machine with wet processing.

◆ the machine tool adopts vertical layout structure, and the linear motion axis guide rail is supported by large plane cast iron guide rail and scraped by precision, with good contact strength and motion accuracy.

◆ the machine tool is equipped with fully enclosed protective cover, oil mist collection device, automatic chip removal device, automatic workpiece clamping device, etc.

◆ the machine tool can be configured with FANUC or Siemens system.

Main technical specifications and parameters of machine tool:

Serial number	Main technical specifications		Parameter specification
Serial number	Main technical specifications		Y3140CNC4~6
1	Maximum workpiece diameter	mm	400
2	Maximum workpiece modulus	mm	14
3	Maximum rotation angle of tool rest	°	±45°
4	Maximum speed of hob spindle	r/min	500
5	Maximum speed of worktable	r/min	35
6	Maximum tool size (diameter) × Length)	mm	Φ200×240
7	Maximum axial movement of hob	mm	200
8	Distance from hob center to worktable rotation center	mm	45-305
9	Distance from hob center to worktable	mm	280-680
