Y8030CNC

CNC gear turning machine

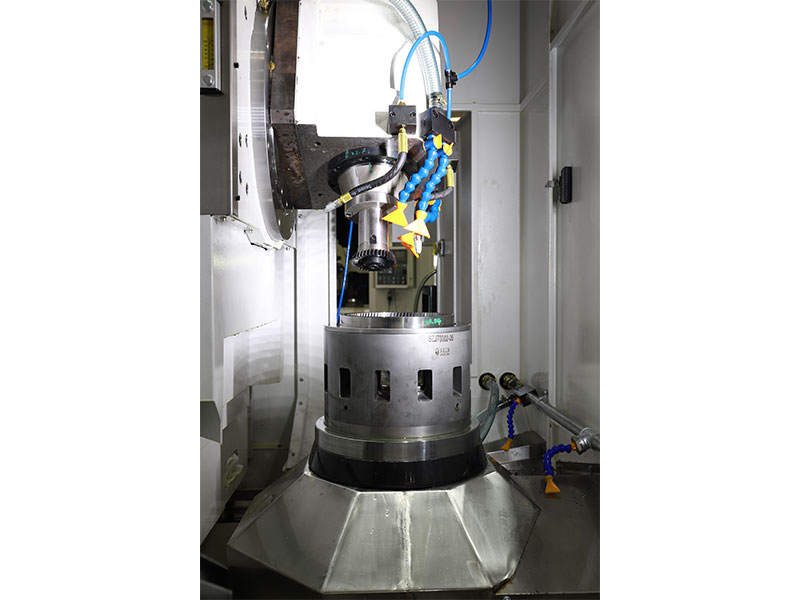

The machine tool is mainly used for mass processing of small and medium modulus internal gears, such as internal gear ring of automobile synchronizer, internal gear ring of reducer, etc. it is especially suitable for the processing of tooth parts without tool return groove or with small tool return groove.

CategoryGear Turning Machine

Consult Back to list

Detail

Main performance and characteristics of machine tool:

◆ the machine tool is a six axis four linkage CNC gear turning machine, which can use dry and wet cutting methods to efficiently process internal and external cylindrical gears, green, environmental protection and strong applicability.

◆ high performance motorized spindle is directly used to drive the spindle of gear turning cutter and worktable of machine tool, with good rigidity and high precision of transmission system.

◆ the machine tool has the characteristics of precision and high efficiency. The machining efficiency is 4-8 times that of gear shaper, and the finishing accuracy reaches grade 6-7 of GB / T 10095.1-2008.

◆ the machine tool has a fully enclosed external shield and internal shield, and a perfect and reliable system for rapid collection and removal of chip, oil mist and dust.

◆ the machine tool can be equipped with single machine loading and unloading mechanism and automatic transmission silo to meet the needs of automatic and flexible production.

◆ the machine tool can be configured with Siemens or FANUC system.

Main technical specifications and parameters of machine tool:

Serial number	Main technical specifications		Parameter specification
Serial number	Main technical specifications		Y8030CNC
1	Maximum workpiece internal tooth root circle diameter	mm	300
2	Maximum external tooth diameter of workpiece	mm	300
3	Maximum workpiece modulus	mm	5
4	Maximum tool return angle	°	±25°
5	Horizontal distance range from tool center to worktable Center	mm	0-350
6	Distance range between spindle end face of gear turning tool and worktable surface	mm	230-630
7	Maximum speed of gear cutter spindle	r/min	2500
8	Maximum speed of worktable	r/min	1500
