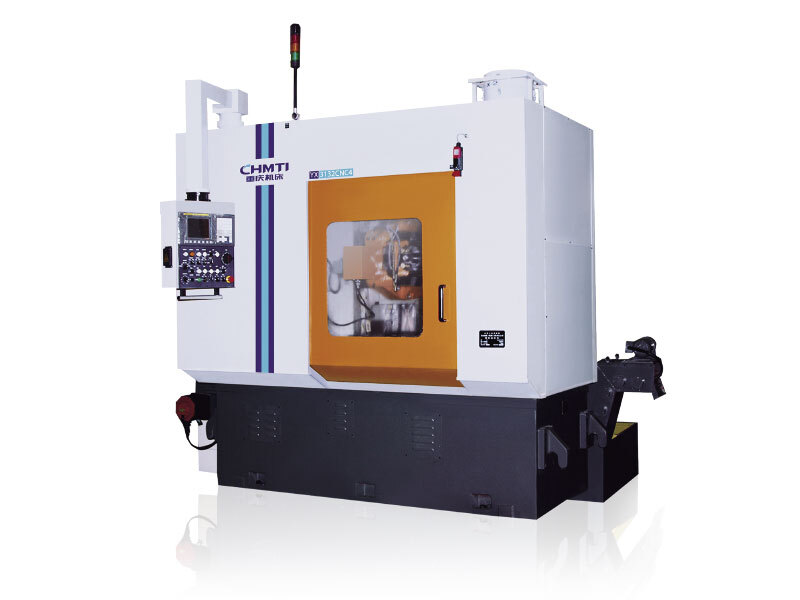

YX3132CNC

Upgrading CNC hobbing machine

The machine tool is mainly suitable for gear processing in passenger cars, commercial vehicles, construction machinery, marine machinery, mining machinery, agricultural machinery and other industries.

CategoryRemanufacturing Machine Tool

Consult Back to list

Detail

Main performance and characteristics of machine tool:

◆ the machine tool is a five axis four linkage wet cutting CNC hobbing machine.

◆ the machining accuracy and stability of the machine tool are good.

◆ the machine tool has good man-machine interface, parametric automatic programming function, system self diagnosis function, etc.

◆ the machine tool is equipped with fully enclosed shield, oil mist collection device, automatic chip removal device, automatic workpiece clamping device, etc.

◆ the standard configuration of the machine tool is domestic CNC system, and Fanuc or Siemens system can also be selected.

◆ the machine tool can process cylindrical spur gear, helical gear, small taper gear, drum gear, sprocket, spline, worm gear, etc.

Main technical specifications and parameters of machine tool:

Serial number	Main technical specifications		Parameter specification
Serial number	Main technical specifications		YX3132CNC
1	Maximum workpiece diameter	mm	320
2	Maximum workpiece modulus	mm	8
3	Maximum spindle speed	r/min	540
4	Maximum speed of worktable	r/min	32
5	Maximum tool size (diameter) × Length)	mm	Φ160×200
6	Maximum tool channeling distance	mm	150
