Chongqing Machine Tool (Group) Co., Ltd.

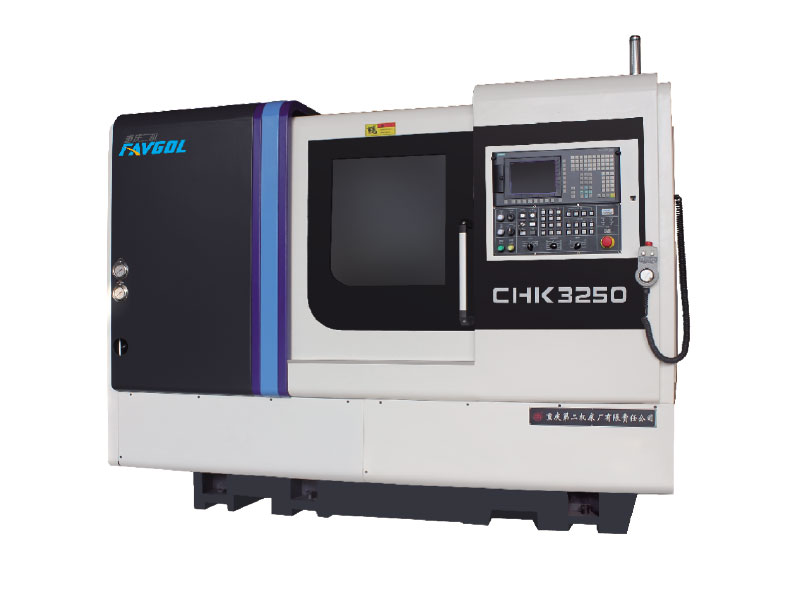

The machine tool is a three-axis two linkage high-speed precision CNC lathe, which is green, environment-friendly and efficient.

The machine tool adopts 45 ° integral bed body and bed base, with good vibration resistance, sufficient rigidity, fully enclosed protection and good chip removal.

The machine tool servo spindle motor directly drives the spindle to rotate through the high-speed belt, which has the advantages of simple structure and low noise. The feed shaft is configured with servo motor, ball screw and linear guide rail to ensure the accuracy and stability of the machine tool.

The machine tool can be equipped with servo programming tailstock. The tailstock is integrally cast with high rigidity structure, and the top is MT4 taper. It is characterized by servo motor drive and adjustable pressure. The tailstock has the characteristics of "follow-up". The tailstock adopts positioning programming and sleeve free design to achieve maximum rigidity.

The machine tool can be configured with automatic line interface to form an automatic production line.
