Plate chip conveyor

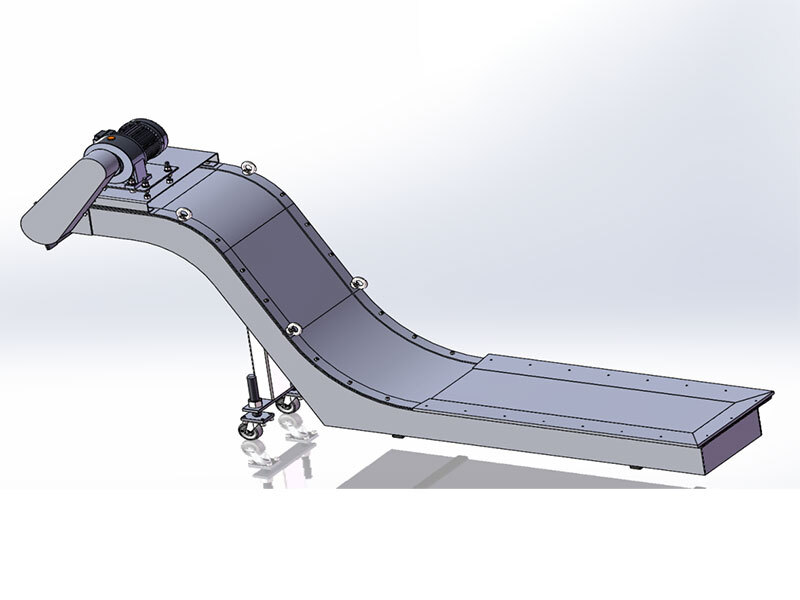

The equipment is a plate chip conveyor, which is suitable for all kinds of CNC machine tools, machining centers and flexible production lines with a high degree of automation. The chip removal materials include flake and granular magnetic steel chips.
CategoryGreen Manufacturing Equipment
Consult Back to list
Detail

1. The equipment drives the sprocket chain through the reduction motor, takes the strip magnet as the transmission belt, and the iron filings of the machine tool fall from the chip outlet.

2. The equipment has the advantages of smooth chip removal, small volume, high efficiency, stable transportation, safety, reliability, low noise and overload protection.

3. Main specifications and technical parameters of equipment


Equipment model
 SGBS-Machine tool model
Equipment length x width x height Customized
Motor power 0.2kw
Reduction ratio 1:90
Chip removal about9kg/min
