Chongqing Machine Tool (Group) Co., Ltd.

Party secretary and Chairman: Liu Deyong
　　

Chongqing Machine Tool (Group) Co., Ltd. (chmti), with a history of 80 years, is a wholly-owned subsidiary of Chongqing electromechanical Co., Ltd. affiliated to Chongqing electromechanical holding group company. The products cover gear processing machine tools, lathes, complex cutting tools and intelligent integrated production lines. It is a complete system provider of gear processing technology. The leading products CNC gear hobbing machine, worm grinding wheel gear grinding machine and CNC gear shaving machine have long been in the forefront of the domestic market. They are the leader in China's gear machine tool industry, the centralized unit of industry standardization and the national high-tech enterprise. They have established a national enterprise technology center, postdoctoral scientific research workstation, academician expert workstation, European machine tool R & D center, etc. The industry has extended to precision screw manufacturing, agricultural equipment and photovoltaic equipment manufacturing, and has begun to take shape. It has successively undertaken more than 200 national, provincial and ministerial scientific research projects and obtained more than 500 authorized patents.

In order to adapt to the current economic development trend at home and abroad, Chongqing Machine Tool (Group) Co., Ltd. puts forward the overall strategic goal of "entering the first matrix of gear machine tools in the world and becoming an intelligent manufacturing equipment enterprise" in the enterprise's "14th five year plan" development strategic plan.
In 2021, the company will adhere to refining and strengthening traditional industries such as gear machine tools, complex cutting tools and turning centers, accelerate the development and marketization of green intelligent emerging industries such as precision screws, special machinery, intelligent manufacturing, photovoltaic, wind power, FSW friction stir welding, Se wafer polishing semiconductor equipment, and improve the enterprise's ability to resist risks and participate in domestic and international market competition.
In 2021, Chongqing Machine Tool Group will strengthen technical research on basic application, process optimization and user complete equipment process system, and provide users with complete equipment process system solutions focusing on improving product quality and market competitiveness. At the same time, in the gear machine tool sector, we will focus on investment in precision equipment and strengthen the product development of gear grinding machine, gear honing machine and gear turning machine. In the lathe sector, strengthen the development of turning grinding compound machining center and vertical CNC lathe. In the complex tool plate, strengthen the development of edge milling tools and gear turning tools. In the green equipment sector, we will strengthen the development of processing equipment for wind power blades, silicon wafers, friction welding and photovoltaic industries, so as to make it a new economic growth point for enterprise transformation and upgrading.

Introduction to cimt2021 key exhibits

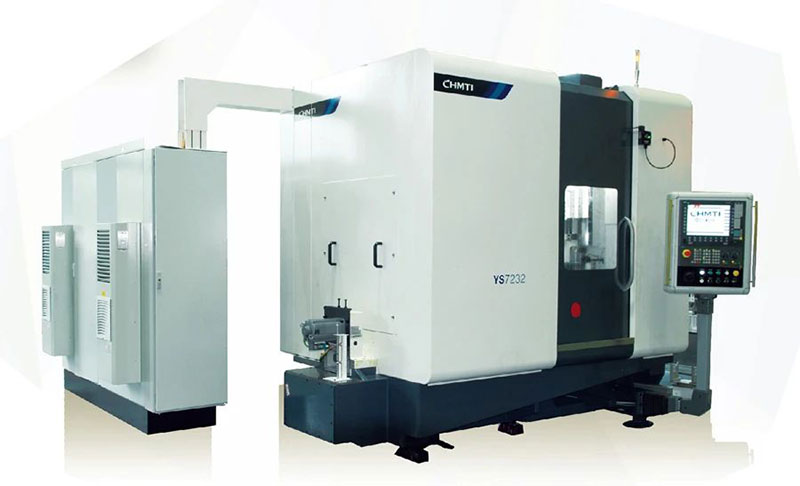

1. Ys7232a worm wheel gear grinding machine

The machine is an 11 axis 5-linkage CNC gear grinding machine, equipped with chmti characteristic man-machine interface (zero programming), with high-speed tooth alignment function, tooth surface distortion compensation function, universal trimming function, Anilox grinding function, arbitrary tooth direction modification function, etc. The machine is equipped with 12000r / min original imported high-speed precision motorized spindle and special on-line dynamic balance mechanism. The worm wheel with diameter of 90-240mm is used to realize the precision and efficient grinding of double shaft teeth and other gears. The maximum machining diameter of the machine tool is 320mm, the maximum machining modulus is 5mm, the maximum speed of the spindle is 12000r / min, the maximum speed of the worktable is 1500r / min, and the maximum installation diameter, aperture and length of the grinding wheel Φ 240mm ×Φ 76.2mm × 200mm。 The machine tool is mainly suitable for gear precision grinding in new energy vehicles, automatic transmissions, passenger cars, commercial vehicles, precision reducers and other industries. The batch processing accuracy can reach level 4-5 of GB / t10095.1-2008 standard.

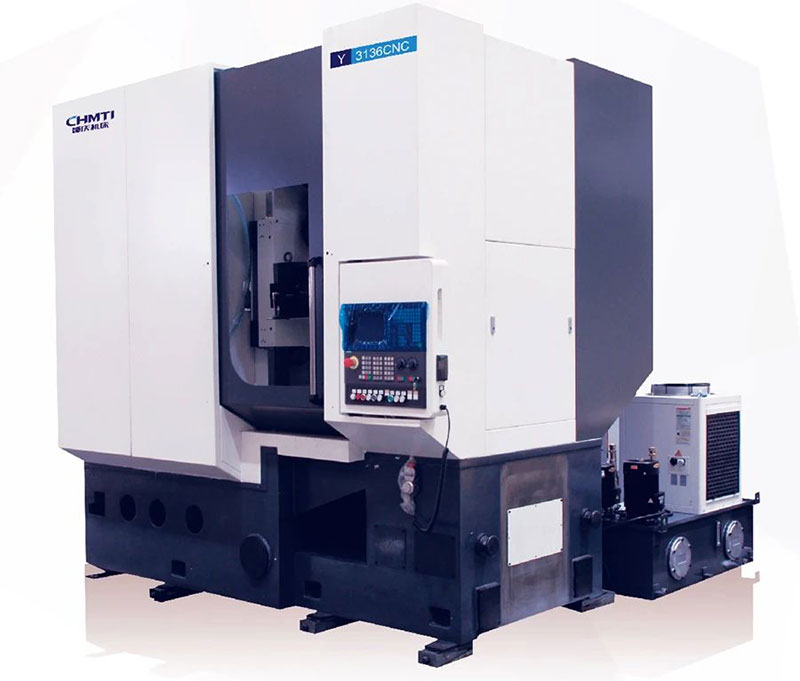

2. Y3136cnc high efficiency re cutting hobbing machine

The machine tool is a 6-axis 4-linkage NC gear hobbing machine with high rigidity, high efficiency and high precision. The machine tool adopts the y-axis layout under the large column. At the same time, the y-axis guide rail inclined plane layout not only increases the rigidity of the tool holder, but also uses the gravity of the machine tool to offset part of the cutting reaction force, so as to further improve the rigidity and stability of the machine tool.
The machine tool can be configured with Siemens and Fanuc systems, and can be configured for dry and wet processing according to the actual processing needs of users. The maximum processing diameter is 360mm, the maximum processing modulus is 16mm, and the maximum tool size (diameter × Length) Φ 220mm × 230mm, very suitable for processing large module and small number of teeth gears in commercial vehicles, ships, wind power and construction machinery industries. The one size fits all processing accuracy of gears with module 12 can reach grade 7 of GB / t10095.1-2008 standard.

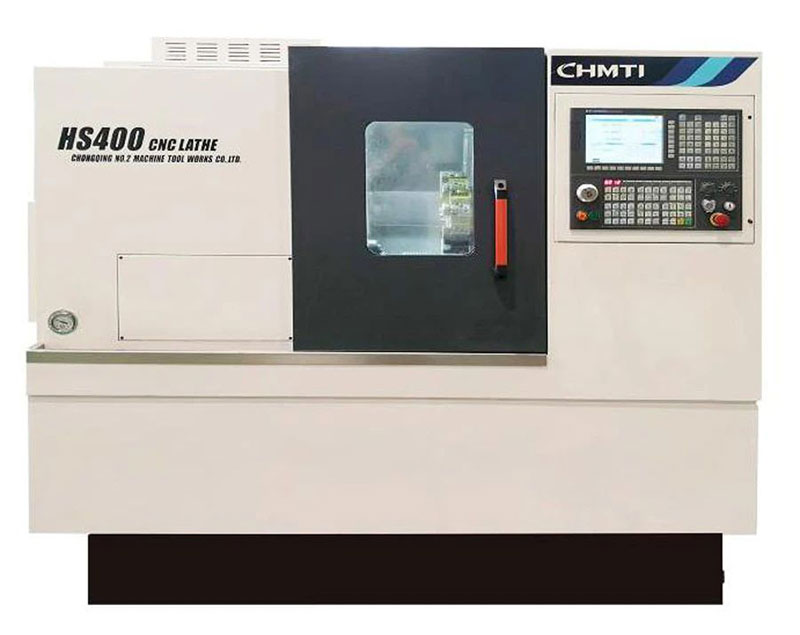

3. Hs400 direct drive high precision CNC lathe

Hs400 direct drive high-precision CNC lathe is a high-precision CNC lathe designed and developed for the high-precision processing requirements of automobile and motorcycle industry, light industry instrument industry. The lathe has a compact structure and the strongest machinability. The layout of the whole machine adopts a 30 ° inclined tool rest layout structure. The main engine covers a small area and has complete turning functions. The optimized design increases its internal operation space and has good pleasant operation.
The chip conveyor equipped with the machine tool can easily convert side chip removal and rear chip removal according to the needs of the site, which is convenient for the flow operation of the production line. The appearance of the machine tool is a fully enclosed sliding protective door structure, which is beautiful and easy to operate. It can also effectively prevent the flying out of chips and the splash of coolant with the help of sliding protective door. It is an environment-friendly CNC lathe, which can meet the requirements of users' green production.

Follow cimt2021 Exhibition for the latest information~~
Basic information of the exhibition

Name: the 17th China International Machine Tool Exhibition (cimt2021)
Extension period: April 12-17, 2021
Theme: integration and win-win wisdom to create the future
Venue: Beijing China International Exhibition Center (new pavilion)
Address: No. 88, Yuxiang Road, Tianzhu, Shunyi, Beijing
Sponsor: China Machine Tool Industry Association
Organizer: China Machine Tool Industry Association
China International Exhibition Center Group Corporation
